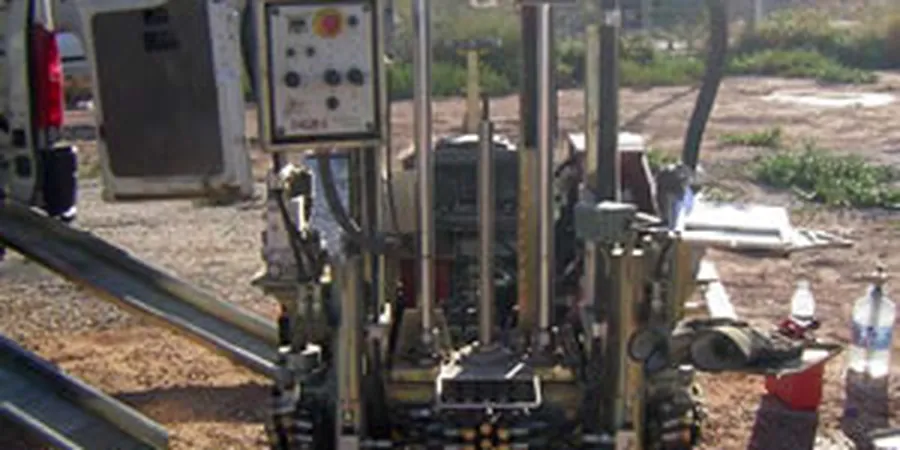

Nelson’s built environment stretches from the granite foothills of the Bryant Range down to the reclaimed margins of Tasman Bay. The city’s early port expansion relied heavily on hydraulic fill and estuarine deposits, creating a subsurface mosaic that still challenges foundation design today. When investigating these variable profiles, the CPT test provides a near-continuous record of soil behaviour that discrete sampling simply cannot match. Our team has pushed cone penetrometers through interbedded sands and silts across Stoke, Richmond, and the port industrial zone, measuring tip resistance and sleeve friction at 20 mm increments. This data feeds directly into bearing capacity models, settlement analyses, and the liquefaction triggering assessments mandated by the NZGS Module 4 framework for the region’s seismic hazard.
In Nelson’s interbedded alluvium, a single CPT sounding replaces multiple boreholes by mapping strata transitions to within a few centimetres of vertical resolution.
Service characteristics in Nelson
Critical ground factors in Nelson
Tasman Bay’s tidal range of over 4 metres creates a dynamic groundwater regime that directly influences CPT interpretation. A cone profile logged at low tide may show negative excess pore pressures in dense sands, while the same stratum probed at high tide exhibits a markedly different u2 response. Our operators correct all readings to a consistent datum referenced against real-time barometric and tidal data, a step that generic reporting often overlooks. The Moutere Gravels, which underlie much of the region, present an additional challenge: their high quartz content and dense fabric can generate tip resistances exceeding 50 MPa, placing extreme demands on thrust machine capacity and rod alignment. Without a properly anchored 20-tonne reaction system, refusal occurs before the gravel–bedrock interface is confirmed, leaving critical pile toe levels unresolved. We routinely deploy push-extend systems with casing to maintain penetration through these hard layers without buckling the rod string.
Our services
Our CPT services in Nelson are configured to address the specific ground conditions encountered from the Waimea Plains to the central city alluvium. Each programme is designed with the end use in mind, whether that is shallow foundation verification, deep pile design, or post-liquefaction settlement calculation.
Piezocone (CPTu) Profiling with Dissipation Tests
We use 10 cm² and 15 cm² piezocones equipped with shoulder-filter pore pressure sensors. At predetermined depths, we halt penetration and record the decay of excess pore pressure over time, yielding the coefficient of consolidation (cv) for cohesive layers. This data refines settlement-rate predictions under embankment loads on the Maitai silts.
Seismic CPT (SCPTu) for Vs Profiling
A triaxial geophone module is incorporated directly behind the cone, allowing downhole measurement of shear wave velocity at 1-metre intervals during a single push. The resulting Vs profiles feed directly into site class determinations per NZS 1170.5 and liquefaction triggering analyses using the Kayen et al. (2013) method.
Deep Pile Design Parameter Derivation
For projects requiring bored or driven piles, we convert corrected cone resistance (qt) and friction ratio (Rf) into unit shaft friction and end-bearing capacity using the LCPC (Bustamante & Gianeselli) and ICP-05 methods. Reports include lithological logs interpreted from Soil Behaviour Type charts calibrated to Nelson's local geology.
Frequently asked questions
What depth can a CPT rig reach in Nelson's Moutere Gravel formations?
In the dense Moutere Gravels, refusal typically occurs between 8 and 14 metres depth with a 20-tonne reaction system. We deploy push-extend casing techniques and pre-drilling through the upper cobble-rich horizon to maximise penetration. Where refusal is reached before the target depth, we recommend supplementing the CPT with rotary core drilling to confirm the gravel–bedrock transition.
How much does a CPT test cost in the Nelson-Tasman region?
A standard piezocone sounding with real-time data acquisition and a preliminary factual report generally ranges from NZ$280 to NZ$380 per metre pushed, depending on access conditions, depth achieved, and whether seismic or dissipation modules are included. Mobilisation within the Nelson urban area is typically flat-rated; remote sites on the West Bank or Cable Bay may incur additional travel charges.
Can CPT data be used directly for liquefaction analysis under the NZGS guidelines?
Yes. The NZGS Module 4 framework explicitly accepts CPT-based triggering methods, including the Boulanger & Idriss (2014) and Kayen et al. (2013) procedures. We provide normalised tip resistance (qc1Ncs) and corrected cyclic resistance ratio (CRR) values for each depth increment, along with the factor of safety against liquefaction triggering and post-liquefaction volumetric strain estimates for settlement calculations.
How do tidal fluctuations affect CPT pore pressure readings at sites near the Nelson waterfront?
Tidal variation in Tasman Bay can shift the hydrostatic baseline by up to 0.5 metres of water head over a six-hour period. Our procedure includes installing a standpipe piezometer or referencing a local tidal gauge to establish the correct equilibrium pore pressure (u0) before each sounding. All excess pore pressure (Δu) values are then computed against this time-matched baseline, ensuring that derived parameters like Bq (pore pressure ratio) and qt corrections remain valid regardless of the tidal stage.
