In Nelson, we frequently see pavement designers caught off guard by the variability of the local ground. You might have a site on the Moutere Gravels that looks bulletproof in summer, but the fine silty matrix can lose significant strength when saturated. That is exactly where the laboratory CBR test becomes non-negotiable. Rather than relying solely on field density readings or a Scala penetrometer, a soaked CBR value gives you the true picture of how the subgrade will behave under the worst-case moisture scenario. The team here correlates these results with the specific geology of the region, from the weathered granite near Cable Bay to the alluvial deposits along the Maitai River. When roading projects push into the Port Hills, we often recommend pairing the in-situ permeability assessment with lab CBR to understand how water moves through those loess-derived silts before finalising the pavement thickness. Getting this wrong means premature rutting, and nobody wants that callback.
A soaked CBR value from the Moutere Gravels often tells a very different story than a dry density test—we have seen drops exceeding 60% in local subgrades.
Service characteristics in Nelson
Critical ground factors in Nelson

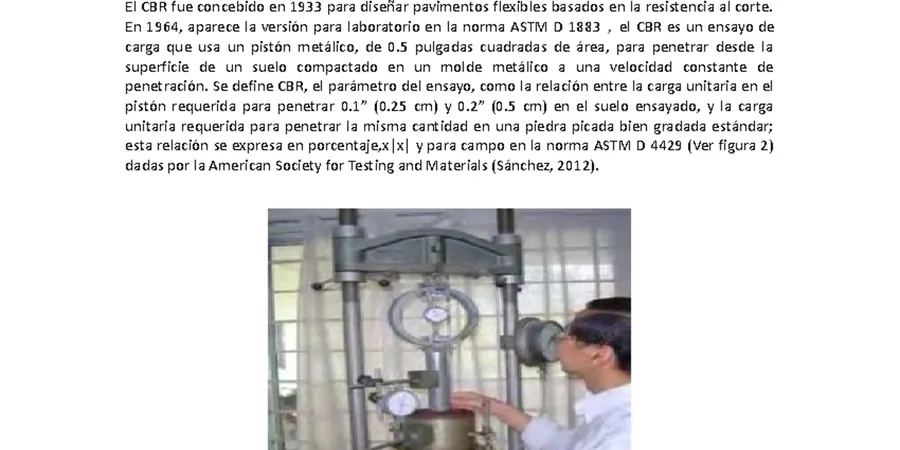

The CBR plunger itself is a deceptively simple piece of kit—a polished steel cylinder 49.6 mm in diameter, driven by a hydraulic or screw-jack loading frame at precisely 1 mm per minute. But the risk in Nelson is not the equipment. It is the assumption that a single CBR value represents the entire site. We have seen projects where the subgrade changes from a stiff Moutere Gravel to a plastic, weathered granite residual soil within 15 metres. Running one bulk sample from the best-looking spot is a recipe for differential rutting down the road. The other local trap is sampling during a dry spell. A sample taken from the Maitai floodplain in February will have a natural moisture content well below optimum, and even after the 96-hour soak, it may not fully replicate the in-service conditions of a wet winter. That is why we always request the full moisture-density relationship alongside the CBR, and we prefer to test at three compaction levels to generate a strength-moisture curve. It adds a day to the programme, but it saves rebuilding the pavement base three years later.
Our services
Our Nelson laboratory provides CBR testing as part of a broader geotechnical investigation package. For pavement design, we typically combine it with the following complementary services to build a complete picture of the subgrade performance.
Soaked Laboratory CBR
The core test for pavement design, run according to NZS 4402 Test 4.1.2 with a full 96-hour soak. We report CBR at 2.5 mm and 5.0 mm penetration, plus the swelling percentage and moisture content before and after soaking. For Nelson subdivisions, we typically test at the design moisture condition plus two points either side to generate a sensitivity curve.
Moisture-Density Relationship (Compaction)
We always pair the CBR with a standard or heavy Proctor compaction test to determine the optimum moisture content and maximum dry density. This is critical in Nelson because the fine fraction of the Moutere Gravels often has a compaction curve that is more sensitive to moisture than the clean gravel appearance would suggest.
Frequently asked questions
What does a laboratory CBR test cost in Nelson?
For a standard soaked CBR test run according to NZS 4402, you are generally looking at a range of NZ$200 to NZ$340 per point. The exact figure depends on whether you need a single compaction effort or a three-point curve to establish the strength-moisture relationship. If the material has oversized particles that require scalping and replacement, the sample preparation time adds to the cost. We can provide a firm quote once we have seen the material or the borehole logs.
Why does NZS 4404 require a soaked CBR instead of a field test?
The soaked CBR test represents the worst-case scenario for the subgrade—after prolonged rain, when the water table rises and the pavement base is saturated. A field Scala penetrometer or a nuclear density gauge reading taken in summer can be misleadingly optimistic. The 96-hour soak in the lab simulates what happens to the Moutere Gravels or Maitai silts after a Nelson winter, and that value is what drives the pavement design thickness in the NZTA and local authority standards.
How many CBR samples do I need for a residential subdivision in Nelson?
The NZS 4404 guideline suggests a minimum of one CBR test per distinct soil type or per 500 m² of roading subgrade, whichever yields more tests. In practice, for a typical Nelson hillside subdivision with Moutere Gravel and some loess pockets, we would recommend sampling at every change in material, plus a minimum of three tests along the road alignment. If the site includes cut-to-fill transitions, you need additional points because the fill material will have a different compaction history and strength.
How long does it take to get CBR results from the lab?
The test itself has a fixed timeline: the specimen is compacted and then soaked for 96 hours before the penetration test. Adding sample preparation, compaction, and reporting, you should budget about five to six working days for a standard soaked CBR. If you need a three-point moisture-strength curve, add an extra day because we compact and soak three separate specimens. We can sometimes expedite the reporting if the project schedule is tight, but the 96-hour soak cannot be shortened without compromising the result.
